252Real-time monitoring of genetically encoded redox probes in mammalian cell monolayers

Daria Eyerina, Bruce Morgan, Tobias P Dick, German Cancer Research Center (DKFZ), 05/2014
  • roGFP2-Orp1 is utilized as an H2O2 probe
  • The BMG LABTECH microplate reader is sensitive enough to permit ratiometric roGFP fluorescence measurements from a monolayer of mammalian cells


Redox processes play an important role in cellular physiology and pathology. A particularly powerful tool for the monitoring of cellular redox changes are genetically-encoded biosensors based on redox sensitive green fluorescent protein (roGFP). RoGFPs contain two cysteine residues engineered to be present on the surface of the protein β-barrel, which are capable of forming a disulphide bond. RoGFP can be made to respond to specific redox species via the genetic fusion of appropriate redox enzymes. For example, fusion of roGFP2 to the thiol peroxidase Orp1 generates an H2O2-sensitive probe.

Assay principle

RoGFP2 exhibits two fluorescent excitation maxima, at 405 nm and 488 nm, when monitoring fluorescence emission at 510 nm. The relative intensities of the two excitation maxima shift in an opposing direction upon reduction or oxidation of the roGFP2 disulphide (Fig. 1). Consequently, by simultaneously monitoring fluorescence emission at the two excitation maxima, it is possible to determine the degree of probe oxidation.

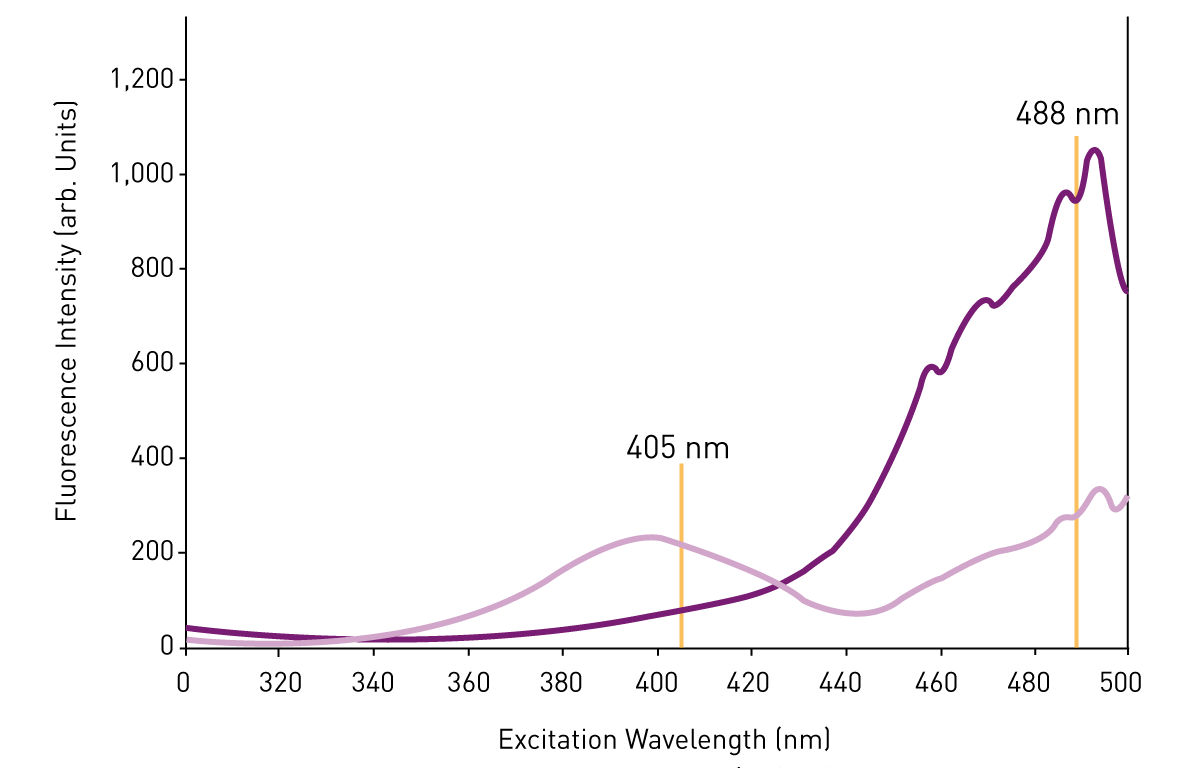

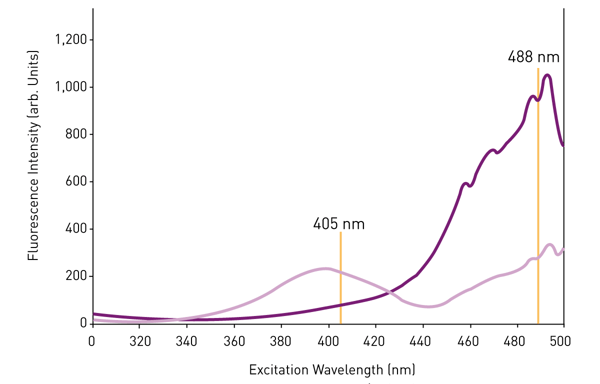

Fig. 1: Redox-dependent changes in the excitation spectrum of roGFP2. Red curve = fully reduced roGFP2. Blue curve = fully oxidised roGFP2.

Fluorescence microplate readers would represent an ideal system for roGFP-based high throughput screening, for example, to identify chemical compounds that modulate redox homeostasis. However, microplate reader-based roGFP measurements of cell monolayers require highly sensitive instruments. In this application note, we show that the BMG LABTECH microplate reader enables roGFP2-based measure-ments in mammalian cell monolayers grown in 96-well imaging plates.

Materials & Methods

  • BMG LABTECH multimode microplate reader
  • Black fl at-bottomed 96-well plates (BD Falcon)
  • Hydrogen peroxide (H2O2) (Sigma, H1009)
  • Imaging buffer (130 mM NaCl, 5 mM KCl, 10 mM D-glucose, 1 mM MgCl2, 1 mM CaCl2, 20 mM HEPES)

Experimental Procedure
Day 1
Cells stably expressing the cytosolic H2O2 probe roGFP2-Orp1 were seeded into a 96-well imaging plate (20,000 cells / well). The same number of non-transduced cells were seeded for use as a background control. The cell number was selected so as to obtain 100% confluence on the day of the measurement.

Day 2
Growth media was removed and the cells were washed twice with PBS, before application of 120 μl of imaging buffer. The response of the probe to an injection of a bolus of H2O2 was followed over time.

Instrument settings

Measurement type: Fluorescence intensity, Bottom reading
Measurement mode: Plate mode kinetic
No. of cycles:
Cycle time:
90 seconds
No. of flashes:
Optic settings:
Dual chromatic
No. 1: 400 520
No. 2: 485 520
Scan mode:
Orbital averaging
Scan diameter:
3 mm
Using onboard injectors
Injection cycle:
Pump speed:
300 ml/sec

Results & Discussion

With the current state feature of the control software, it is possible to follow the reaction progress in real-time. A typical signal curve is shown in Figure 2.

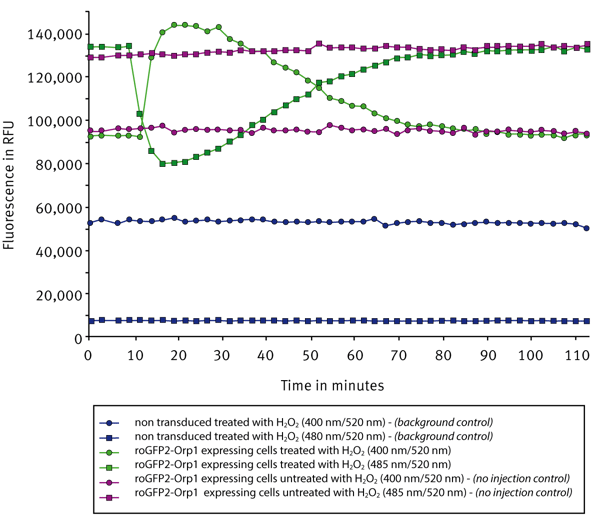

Fig. 2: Signal curves for roGFP2-Orp1 transduced cells before and after injection of hydrogen peroxide in comparison to a non-transfection control and a no injection control.

In the sample expressing the roGFP2-Orp1 construct, it can be clearly seen that after H2O2 injection the values measured for 400/520 will increase while the values for 485/520 decrease respectively. No effect can be seen in the no construct or no injection control.

The measurement data was processed to obtain degree of probe oxidation values. In figure 3 we monitored the response of the roGFP2-Orp1 probe in a monolayer of confluent lung adenocarcinoma cells, following addition of a bolus of H2O2. The sensitivity of the microplate reader makes such measurements easily achievable (Fig. 3).

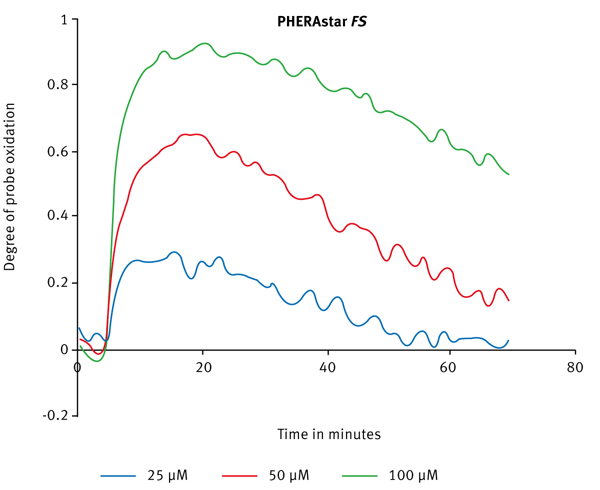

Fig. 3: Lung adenocarcinoma H1975 cells expressing the cytosolic roGFP2-Orp1 probe were grown as a monolayer in 96-well imaging plates. Cells were exposed to H2O2 as indicated, and the probe response followed using the PHERAstar FS.

We next assessed the impact of chemical compounds on cellular redox homeostasis. To this end lung adenocarcinoma cells expressing the cytosolic H2O2 probe roGFP2-Orp1 were treated overnight with different concentrations of the compound of interest. Subsequently, the same cells were challenged with a single bolus of H2O2.

As shown in Figure 4, the compound of interest is found to significantly impair cellular recovery from an H2O2 challenge in a concentration-dependent manner. This result indicates that the compound disrupts reducing systems inside the cell and thus may be considered a candidate drug to sensitise cancer cells to chemo- or radiotherapy.

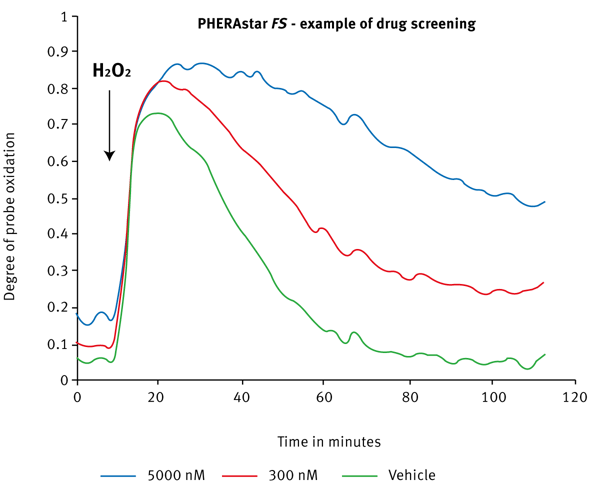

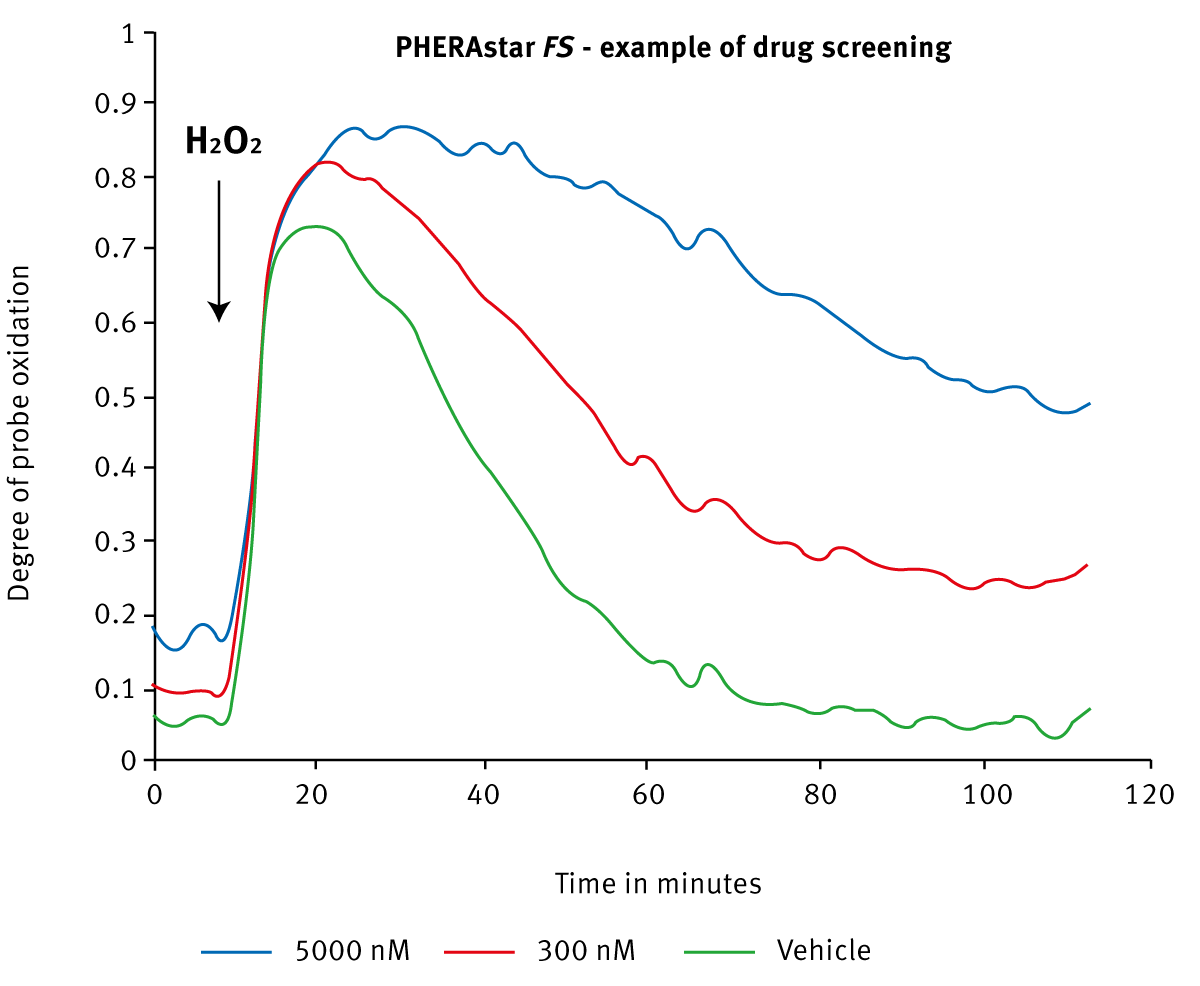

Fig. 4: Lung adenocarcinoma H838 cells expressing the cytosolic H2O2 sensor roGFP2-Orp1 were treated overnight with the indicated concentrations of an (unnamed) pharmacological compound. At the indicated time, cells were challenged with a bolus of H2O2 (final concentration 75 μM) and the response followed over time.


The microplate reader from BMG LABTECH enables monitoring of the ratio-metric fluorescent response of roGFP2-based redox probes in monolayers of mammalian cells.
