264Sequential or simultaneous emission detection for BRET assays

Marjan Orban, BMG LABTECH, 12/2014
  • On-board (internal) reagent injectors for high throughput and fast kinetics
  • A factor of 50 between positive and negative controls


Bioluminescence Resonance Energy Transfer (BRET) is a system of choice for monitoring intermolecular interactions in vivo. BRET is an advanced, non-destructive, cell-based assay technology that is perfectly suited for proteomics applications, including receptor research and the mapping of signal transduction pathways. The assay is based on non-radiative energy transfer between fusion proteins containing Renilla luciferase (Rluc) and e.g. Yellow Fluorescent Protein (YFP). The BRET signal is generated by the oxidation of a coelenterazine derivative substrate.

For this application note, the BRET2™ demo kit has been used to prove the feasibility of performing a BRET assay on a BMG LABTECH microplate reader. The BRET demo kit applies the cell-permeable and non-toxic coelenterazine derivative substrate DeepBlueC™ (DBC) and a mutant of the Green Fluorescent Protein (GFP2) as acceptor. These compounds show improved spectral resolution and sensitivity over earlier variants.

Materials & Methods

All materials were obtained through normal distribution channels from the manufacturers stated.

  • BRET2™ demo kit, PE Life Sciences
  • White 384-well OptiPlate™, PE Life Sciences

A description for the development of BRET2™ protein-protein interaction assays is included with the demo kit. The following section focuses on the microplate reader settings recommended in the assay protocol.

BRET2TM demo kit reagents:

  • Non-transfected CHO cell extracts
  • Negative control (Rluc + GFP2 not fused together)
  • Positive control (Rluc-GFP2 fused together)
  • DeepBlueC™
  • BRET2™ assay buffer

Assay Protocol (for a white 384-well plate)

1. Addition of BRET2™ assay buffer:

  • A10-D12: 15 µL of BRET2™ buffer

2. Addition of 10 µL of each cell extract (Fig.1):

  • A10-A12: Non-transfected cells (blank)
  • B10-B12: Neg. BRET2™ control (Rluc + GFP2)
  • C10-C12: Pos. BRET2™ control (Rluc-GFP2)
  • D10-D12: BRET2™ assay buffer

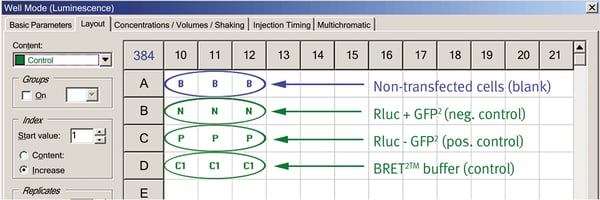

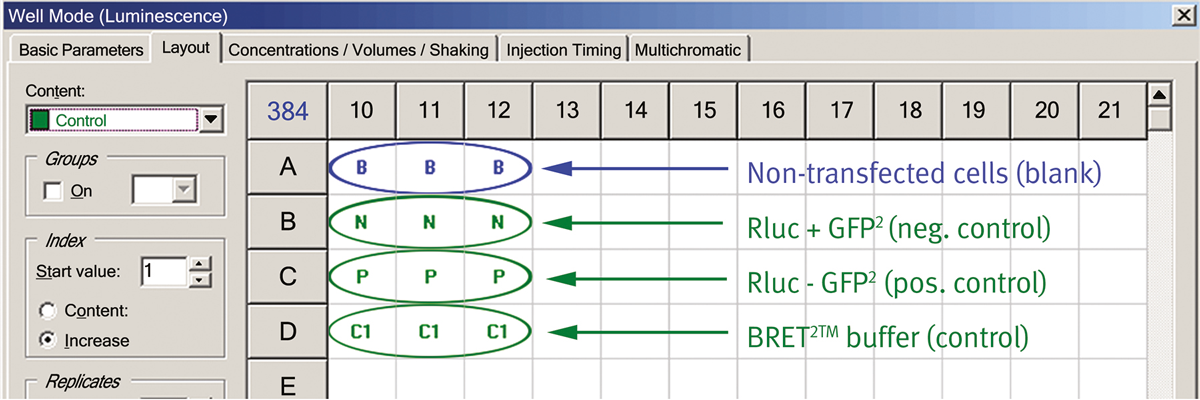

Fig. 1: Layout for the BRET2 demo kit assay.

3. Automated injection of DBC and measurement:

Insert the prepared plate in the instrument and fill the injector with DBC solution.

  • A10-D12: Injection of 25 µL of DBC at 10 µM
On-board reagent injectors allow the measurement of high throughput assays and fast kinetic signals. The data from the measurement was evaluated using the MARS Data analysis software.

Instrument settings

FLUOstar Omega
Detection Mode
Luminescence, Well Mode
Simultaneous dual emission
Sequential dual emission
Filter settings
BRET2 optic module
Measurement Interval time (seconds)
No. of. Intervals
Injection start time (seconds)
Pump speed (µl/s)

Results & Discussion

When the donor and acceptor are in close proximity, the energy resulting from the catalytic degradation of the DBC is transferred from Rluc to GFP2 which will then emit fluorescence at its characteristic wavelength.

The kinetic curves (raw data - blank) of the negative control are shown in Fig.2 for both channels. The low values of the 515 nm channel indicate that no resonance energy transfer occurred. Whereas the positive control shows reduced values at the 410 nm and elevated values at the 515 nm channel due to the BRET effect.

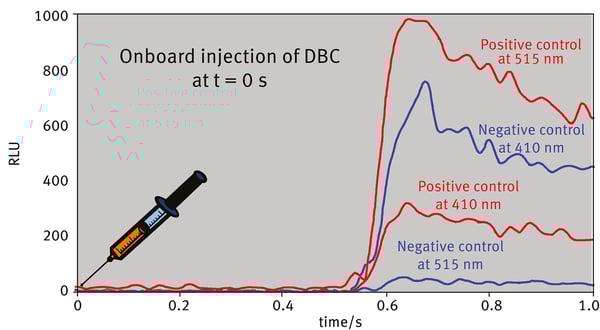

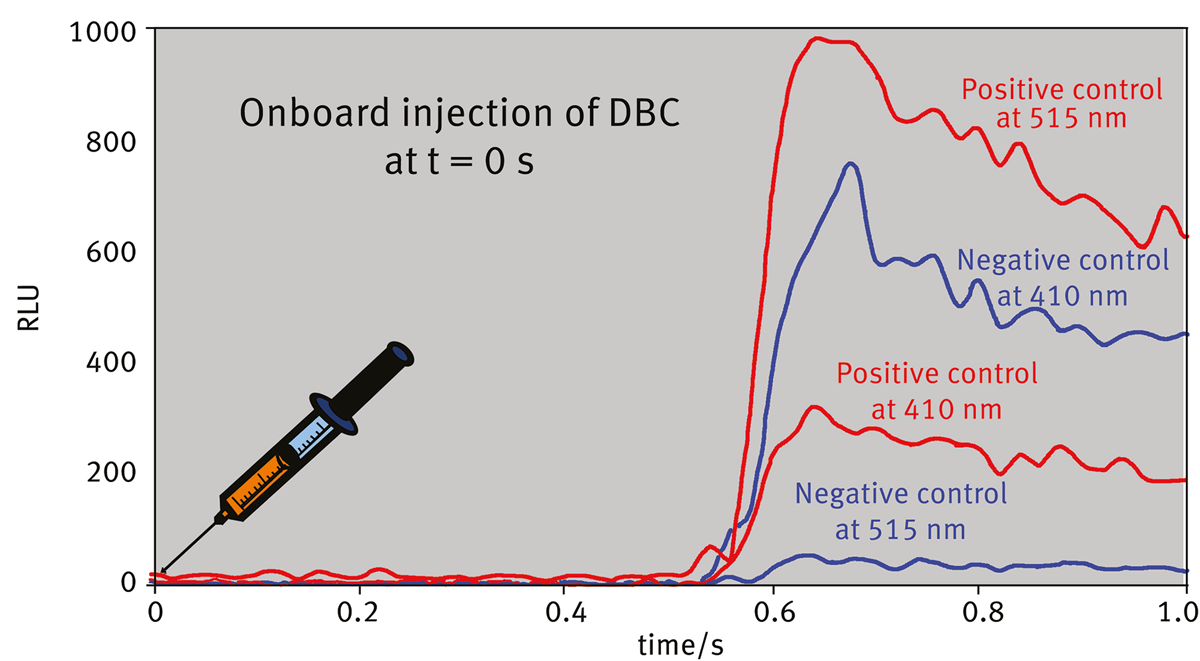

Fig. 2: Resonance energy transfer is obvious for the positive control. No BRET occurs for the negative control. Measurements were performed on a BMG LABTECH instrument using Simultaneous Dual Emission.The calculated BRET ratio indicates the occurrence of protein-protein interaction in vivo. This type of detection eliminates data variability caused by fluctuations in light output which can be found with variations e.g. in assay volume, cell types, number of cells per well, and/or signal decay across the plate.

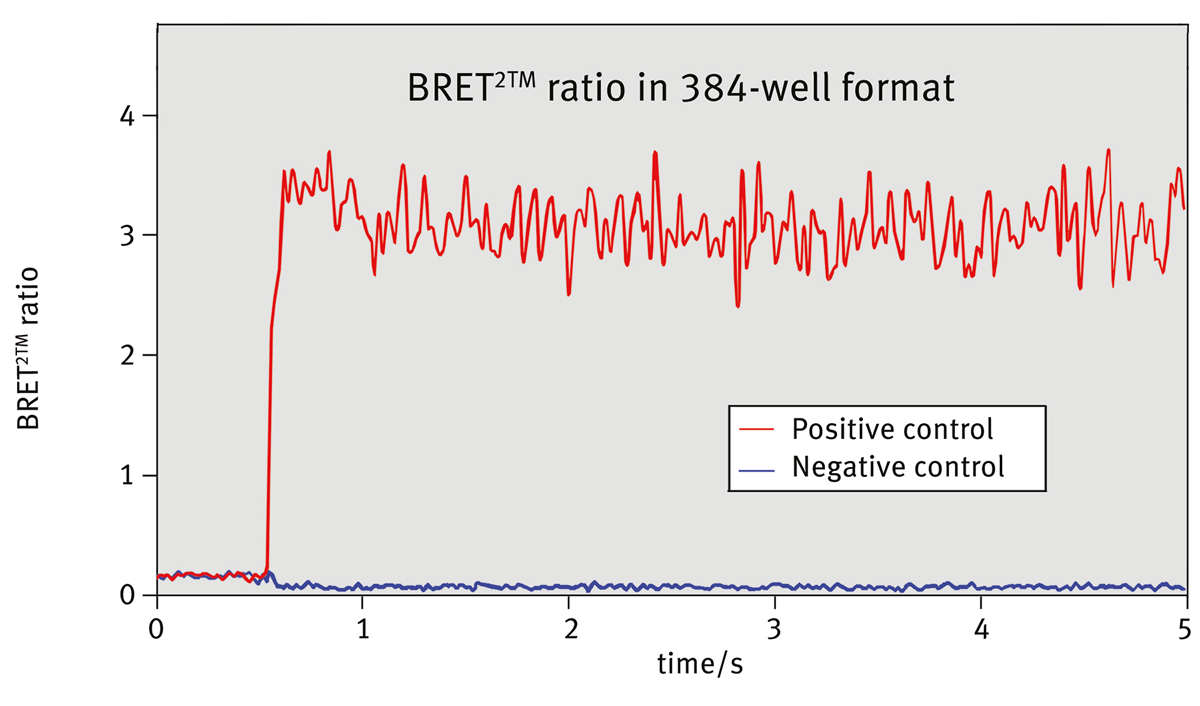

Fig. 3: Ratio of negative and positive control over time. Measurements were performed on a BMG LABTECH instrument using Simultaneous Dual Emission.

In Fig. 3 the blank corrected BRET2™ ratios for both, negative and positive control, are shown and were determined as:

Formula 1: Calculation of the blank corrected BRET2 ratiosThe MARS Data analysis software offers easy-to-use tools to do the ratio calculation in just 1 mouse click. The signal for negative and positive control for measurements using simultaneous dual emission reveals a value of around 0.06 and 3.3 respectively, which leads to a factor of around 50 and clear discrimination between these controls. The signal for negative and positive control for measurements using sequential dual emission lead to values of around 0.05 and 1.9 respectively, which leads to a factor of around 40 (Fig. 4).

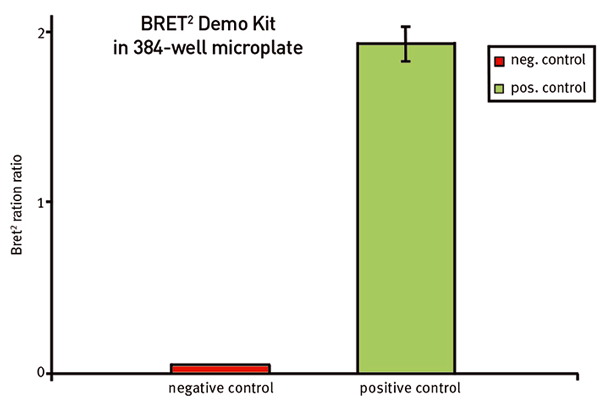

Fig. 4: Ratio of negative and positive control. Measurements were performed on a BMG LABTECH instrument using sequential emission.

The high factor between these controls is caused by the artificial fusion construct of the positive control (Rluc-GFP2) resulting in an extremely high BRET. Real assay samples will presumably result in lower ratios. Nevertheless, BRET assays show no photo-bleaching or photo-isomerization of the donor protein or auto-fluorescence from cells or microplates. Furthermore, the large spectral resolution between donor and emission peaks in BRET2TM (115 nm) greatly improves the signal to background ratio over traditionally used BRET and FRET technologies that typically have only a 50 nm spectral resolution.


Ratiometrically quantifiable BRET2TM assays have been successfully measured using either sequential or simultaneous dual emission. However, the simultaneous dual emission option will lead to a higher assay window. Next to that, more data points per time can be monitored (50 measurements per second) and the measurement itself is a lot faster as two wavelengths are measured at the same time. The internal reagent injectors for 384-well plate format offer a great advantage for this kind of assay.
