174_Nephelometric monitoring growth of Candida albicans using BMG LABTECH's NEPHELOstar Plus

U-C. Hipler, Friedrich-Schiller University Jena, 08/2008
  • Laser nephelometry used for fungal growth determination and for measurement of drug solubility
  • Monitoring the growth of Candida albicans in presence of antifungal agents
  • Phase solubility diagrams of potential drug presented


Cyclodextrins (CD) have become useful pharmaceutical excipients, due to their potential to form inclusion complexes with appropriately sized drug molecules. The resulting complexes generally offer a variety of physico-chemical advantages over the free drug, including increased water solubility, enhanced bioavailability, improved stability, reduced side effects, etc.

Econazole-nitrate (EC) and ciclopirox-olamine (CI) are well known antifungal agents suitable for the treatment of many mycotic infections. Previous studies showed  that both dissolution properties and consequently microbiological activities of econazole, with very low water solubility (about 3 μg/mL at 25°C), can be improved by complexation with natural cyclodextrins, particularly with β-CD3-5.

By increasing the water solubility of the drug it should be possible to improve its bioavailability, thus enabling improved oral or topical formulations.

Laser nephelometry has been shown to be a reliable technique for the measurement of drug solubility in plate formats up to 384 well. Laser nephelometry is the measurement of forward scattered light. When a laser beam is directed through a clear solution, the more particles or turbid suspensions (fungi in this study) in  the solution, the greater the amount of forward  scattered light (measured as units). The energy of the scattered light is directly proportional to the particle concentration in the suspension for up to three orders of magnitude. Herein we describe the use of laser nephelometry to investigate the effects of complexation on the drug antimycotic activity using BMG LABTECH’s NEPHELOstar® Plus. Furthermore nephelometry was used to prepare phase solubility diagrams and to monitor fungal growth.

Materials & Methods

  • Candida albicans DSM 11225
  • Sterile and clear 96-well plates, Greiner bio-one β-Cyclodextrin, Wacker-Chemie

Preparation of cultures
C. albicans were grown on SGA (Sabouraud-Glucose-Agar with gentamycin-chloramphenicol from bioMerieux, Germany) at 30°C for 24–48 h. Three to five well-isolated colonies of the same morphological type were selected from an overnight culture using a sterile wire loop and inoculated in 20 mL (SGB). The suspensions were incubated with shaking at 250 rpm/30°C for 24 h. Then the overnight cell cultures were counted using CASY® 1 and adjusted to a final working concentration  of 6×105 cells/mL in SGB (Sabouraud-Glucose- Bouillon from Oxoid Ltd, UK).

Preparation of antifungal agents
Both EC and CI were independently dissolved in a mixture of chloroform/methanol 1:1 to achieve a final stock solution containing 20 mg/mL of antifungal agent. The stock solution of EC was diluted with SGB and adjusted to be 1.25–100 μg/mL while as for CI; it was in the range of 1.25–10 μg/mL. All solutions  were stored at −80°C until used.

Preparation of the inclusion and antifungal complexes
A solution of EC was prepared by dissolving it in a chloroform/methanol mixture 1:1. CD was dissolved in  hot water at 85–90°C. Equimolar amounts (1:1 molar  ratio) of EC and CD solutions were mixed together  with stirring for 30 min at 85–90°C. By cooling, crystallization of the complex was obtained. The complex was filtered using G3 filter and kept in a desiccator overnight. On the other hand, the second complex between CI and CD was also prepared according to the previously mentioned method, in which methanol was used as a proper solvent for CI. Moreover, a molar  ratio of 1:2 of CI:CD was also used. The antifungal complex of CD–EC was prepared in a concentration range of 12.5–100 μg/mL using DMSO as a solvent, while the CD–CI was prepared in a concentration range of 150–400 μg/mL using distilled water.

Phase solubility studies
In this experiment, both of drugs and complexes were diluted in DMSO. Then the drug and complex solutions were independently pipetted into PBS-buffer with a concentration of DMSO of 1–5 vol.%. All samples were measured on the NEPHELOstar Plus at 30°C, with an integration time of 0.1 s, so that a plate (96 samples) could be scanned in ~68 s. A gain of 122 and a laser intensity of 1 % were set to allow direct comparison of all results. All raw data were processed using the  BMG LABTECH MARS data analysis. The scattered  light will remain at a constant intensity until  precipitation occurs. At that point it will increase sharply.

Results & Discussion

Phase solubility diagrams
Solubility diagrams were monitored using laser nephelometry which determines the solubility of potential drug candidates supplied as dimethyl  sulfoxide (DMSO) solutions in 96-well plates (Figure 1).

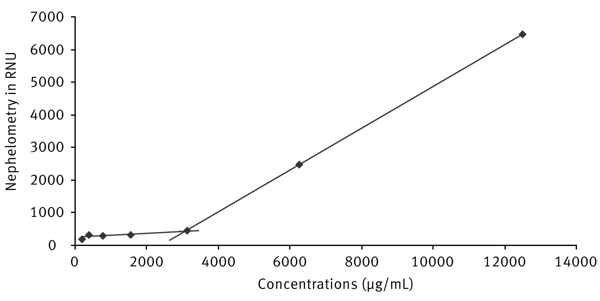

Fig. 1: Solubility diagram of CD-Econazole-nitrate complex.

In the absence of CD, the solubility of EC is deter-mined to be ∼1.3 mg/mL (graph not shown), while in  the presence of CD the solubility increased up to ~3.1 mg/mL for CD–EC complex.

The solubility results for ciclopirox-olamine (CI) differ from the other antifungal agent.

In the absence of cyclodextrin, the solubility of CI is determined to be ∼1.2 mg/mL (graph not shown). Linear line was obtained for CD–CI complex and no point of precipitation is found which indicated complete solubility over the concentration ranges (Figure 2).

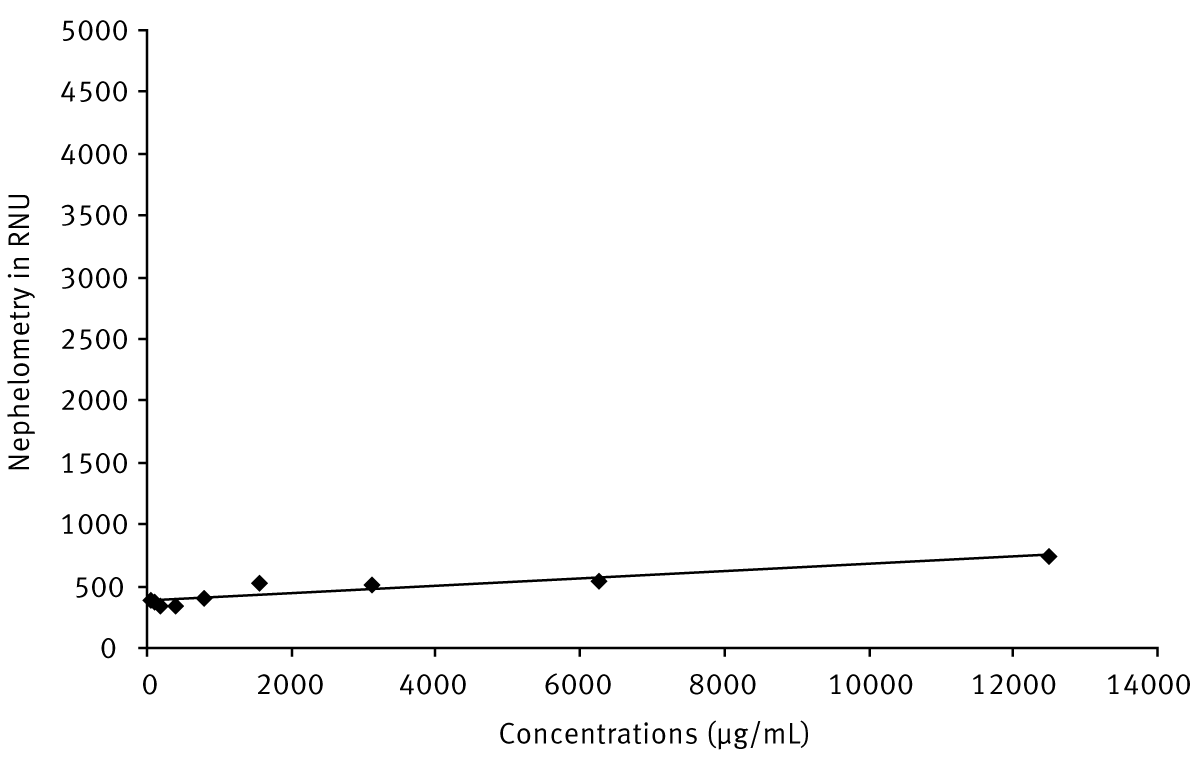

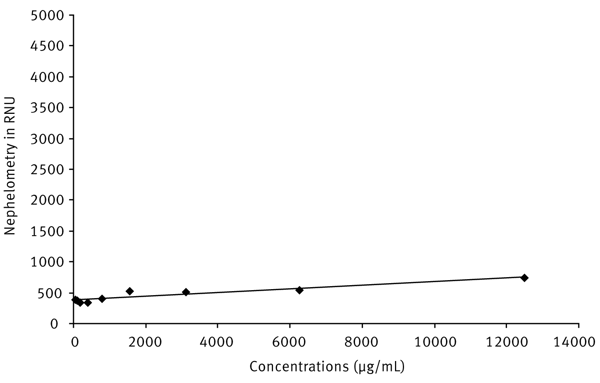

Fig. 2: Solubility diagram of CD-Ciclopirox-olamine complex.

These results indicate that the PathHunter® arrestin (and kinase) assay can be successfully adapted to detection in 1536 well microtiter plates using adherent cells.

Fig. 2: Solubility diagram of CD-Ciclopirox-olamine complex.
Influence of complexed antifungal agents on the growth of Candida albicans

Fig. 3: Influence of ciclopirox complex (CD-CI) on the growth of Candida albicans.

In contrary to CD-EC the complexed ciclopirox was less effective (Figure 3). At a concentration of 200 μg/mL of the complex, cells were inhibited and at a concentration of 300 μg/mL of the complex, cells  were killed. The CD-CI complex was also less  effective compared to the free CI that caused cell death already at 10 μg/mL.


This study has proven that laser nephelometry in a 96-well microtiter plate can be used as a method for the rapid determination of the solubility of potential drug compounds.

Laser nephelometry can distinguish between the concentration at which the drug just goes into or just comes out of solution. On the other hand, this technique can be used efficiently for monitoring and evaluating the growth of microorganisms like fungi or bacteria.
