141ADP Hunter assay for HTS of kinase inhibitors using the PHERAstar

Lindy Kauffman, Uyen Hyugen, DiscoverX Corporation, 05/2006

  • Generic screening of potentially all protein kinases in fluorescence mode using the PHERAstar®FS
  • Direct measurement of ADP and therefore cost effective: No need of specific antibodies or radioactive beads
  • Simple and robust assay with Z’ > 0.7


As mediators of eukaryotic signal transduction, controlling multiple cellular processes such as gene transcription, cell cycling, migration, apoptosis, and differentiation, protein kinases are considered important targets in drug discovery. Kinase HTS screens ideally require kinase assay platforms with broad applicability in the inhibitor drug discovery process and are thus generically applicable to both the kinase target and substrate. Most non-radioactive kinase assay formats are limited in this respect in that they require either specific antibodies or affinity capture reagents, to detect generation of the phosphorylated substrate. Often specific antibodies to the phosphorylated substrate are unavailable while affinity capture methods have limitations in the kinase assay conditions that can be used. During substrate phosphorylation, all kinases consume ATP and assays have been developed to measure ATP depletion occurring during the kinase reaction. However, this approach is limited by the ATP concentration required by the kinase, resulting in a high assay background. Consequently, small signal decreases, as occurs with weakly active kinases are difficult to detect.

An optimal approach is to measure the accumulation of a generic product of the kinase reaction i.e. ADP. This technique results in an increase in assay signal directly proportional to kinase activity and has the marked advantage that the assay is performed at a range of ATP concentrations, including those at the ATP Km value. Consequently, the inhibitory potency of novel compounds, when evaluated at the ATP Km, is a robust measure of activity at the ATP binding site and is easily compared to similar measurements at other kinases. Moreover, measurement of ADP accumulation allows flexibility in choice of the kinase substrate, so that both peptides and endogenous substrates (including during auto-phosphorylation) the kinase may be utilized.

DiscoverX has developed a homogeneous fluorescence based assay to measure the generation of ADP, a universal product of kinase activity. The assay uses an enzyme-coupled reaction that produces a red-shifted fluorescence signal that is directly proportional to the amount of ADP in the solution. ADP Hunter is a biochemical assay to measure the accumulation of ADP (figure 1), a universal product of kinase enzyme activity.

ADP Hunter is specifically designed for high-throughput screening of kinase inhibitors. The assay has been designed for use in full-volume 384-well microplates, but can also be run in additional microplate formats. To allow for automation, a Stop Solution is also provided for added signal and background stabilization. Unlike alternative generic approaches that monitor the depletion of ATP from a kinase reaction, this method follows the product of the reaction, and offers a convenient gain-of-signal assay format. This application note describes the use of the ADP Hunter assay measured on BMG LABTECH’s PHERAstar FS multi-mode microplate reader.

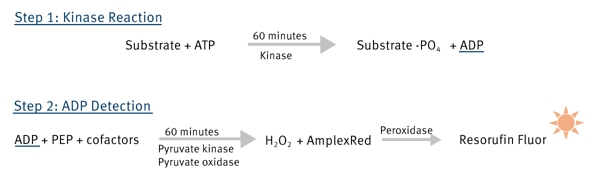

Fig. 1: Schematic principle of the ADP Hunter assay.

Materials & Methods

BMG LABTECH’s PHERAstar FS combines rapid plate reading necessary for HTS with the enhanced performance and sensitivity needed to read small fluid volumes.

The PHERAstar FS is desinged to read all leading HTS detection modes such as fluorescence intensity, time-resolved fluorescence, fluorescence polarization, luminescence and absorption in all formats up to 1536. The PHERAstar FS was run in fluorescence mode for the monitoring of the ADP Hunter demo kit (DiscoverX Corporation) containing the following reagents:

Table 1: ADP Hunter demo kit components


No. Kit Components Volumes
1 ADP Hunter Reagent A 8 mL
2 ADP Hunter Reagent B 15 mL
3 ADP Hunter Stop Solution 4 mL
4 ADP Hunter Standard (360 μM) 2 mL
5 ADP Hunter Assay Buffer 20 mL


The standard curve for DiscoverX’s ADP Hunter kit was run according to the package insert protocol (table 2) in black walled 384-well plates (non-binding poly-propylene plates; Greiner).

Table 2: ADP Hunter protocol for a standard curve


Full Volume 384-well Plate ADP Standard
Step 1: Standard Dilutions 8 μL ADP Standard dilutions
Step 2: ADP Detection a) Add 8 μL Reagent A
b) Add 16 μL Reagent B
c) Incubate 60 minutes
Step 3: Stop Solution Add 4 μL Stop Solution

Read fluorescence intensity signal:
Resorufin excitation wavelength: 530-10 nm
Resorufin emission wavelength: 590-20 nm

Note: The signal may be measured up to 2 hours after
addition of Stop Solution


The fluorescence signal (Ex: 530-10 nm/Em: 590-20) was read 1 hour after the addition of the last reagent on the PHERAstar FS using the following protocol for plate reader setup (figure 2).

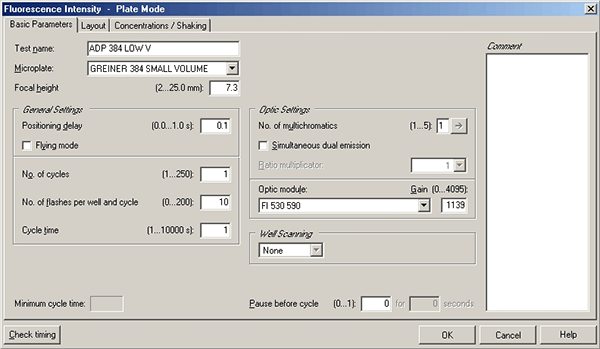

Fig. 2: ADP Hunter assay setup window from the PHERAstar FS, an optical module for the ADP Hunter is directly available from BMG LABTECH.

Results & Discussion

DiscoverX ADP Hunter assay was prepared in 384-well format and standard curves were run on BMG LABTECH’s PHERAstar FS in fluorescence mode. ADP standard detection reagents were added according to the assay protocol and the fluorescence signal was read 1 hour after addition of the last reagent. The ADP standard curve is illustrated in the figure below (figure 3).

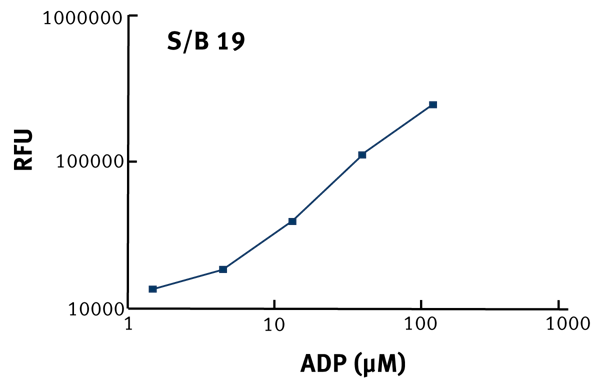

Fig. 3: ADP Hunter standard curve data run in 384-well format.

The ADP Hunter assay format was designed to produce a positive signal in direct proportion to the amount of ADP generated. The dynamic range of the assay is 1.5 μM to 120 μM ADP. The simple homogeneous assay format provides robust and reproducible results with signal to background ratios > 10 and typical Z’ values > 0.7. ADP Hunter is based on enzyme couples reaction that produces a positive red-shifted fluorescence signal, minimizing interference from fluorescent compounds. In addition, ADP Hunter incorporates a stop solution, which stabilizes the detection signal for screening plates in batch mode. Here we have described the value of a generic kinase screening assay when analyzed on a PHERAstar FS instrument. Together, they offer a powerful solution for kinase screening needs.


This assay is a useful tool for those customers who do not have access to a modified substrate, a phosphorylation-state specific antibody, or the ability or desire to use radioactivity. These reagents are designed to be robust and applicable to high throughput fluid dispensing systems using simple plate readers. The PHERAstar FS with its innovative and user-friendly, intuitive software allows for the greatest flexibility and ease of use.

For more information on DiscoverX assays please refer to the website: www.discoverx.com

ADP Hunter, DiscoverX and the DiscoverX logo are registered trademarks of the DiscoverX Corporation.
