Under normal reading conditions, most plate readers take a single measurement in the center of each well. For non-homogeneous samples such as cell-based assays, where the cell distribution is uneven across the well, a single reading is inadequate. In some cases, a single-center point reading may completely miss the material of interest in a large well format.


Matrix Scanning

To overcome this problem, BMG LABTECH has equipped all of its readers with an advanced matrix scanning feature. During matrix scanning mode the microplate reader can take multiple measurements in each well with a resolution of up to 900 points/well (30 x 30 data point matrix). The software is able to display each scan point graphically and create a map for each well. The user can easily remove individual scan points or entire sections of each good map. The interface uses multiple color options to display data quickly in a number of different formats. See how the different scanning options can influence the data variability in our HowTo Note: How to reduce data variability in heterogenous cell samples.

Combined with direct optic bottom reading, matrix scanning offers advanced cell-based analysis even in 384-well plates. This feature is for example irreplaceable for the evaluation of cell migration in wound healing assays as demonstrated in this application note: Real-Time Cell Motility Tracking Increases the Throughput of Scratch Wound Assays.


Orbital and Spiral Averaging

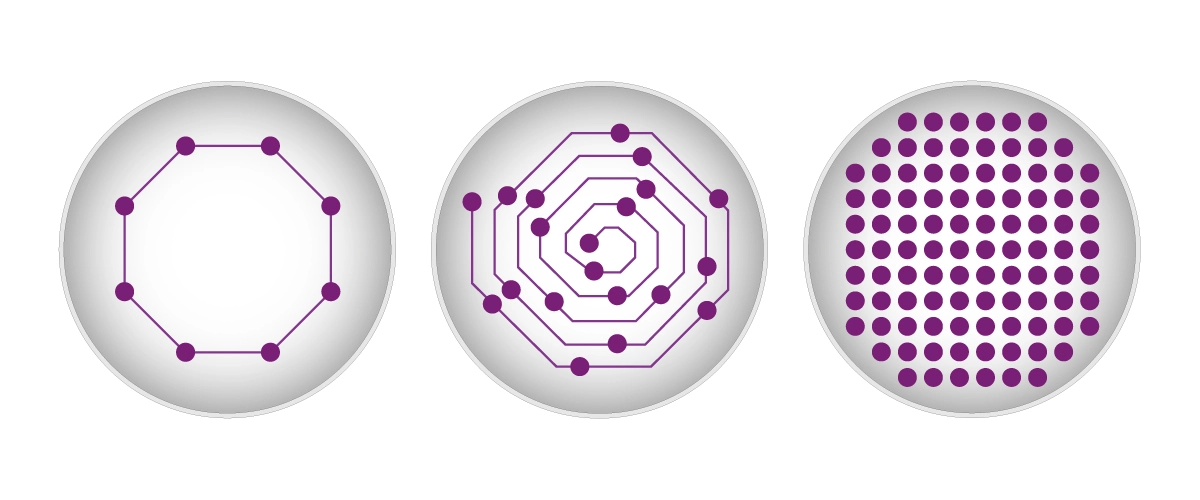

Another possible way to measure non-homogeneous well contents is BMG LABTECH's unique orbital and spiral averaging feature. Using these modes, the plate reader takes several measurements for each well on a defined orbit, collects the data, and calculates an average. The following AppNote describes the use of well scanning for the evaluation of transfection efficiency using GFP and mCherry and highlights the benefits of the individual options.Fig. 1: BMG LABTECH’s well scanning options include orbital, spiral and matrix scanning.
